[Video Interface, Converter Chip] AG 9311 : DP1.2 to HDMI1.4

https://gigglehd.com/gg/game/12561932

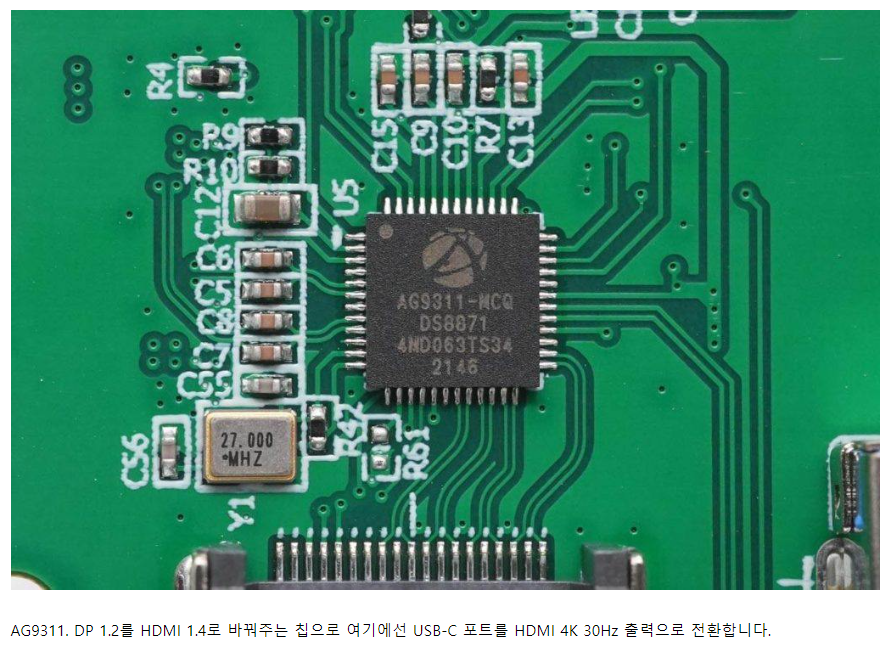

닌텐도 스위치 충전 독 HAC-007의 짝퉁 분해 사진 - 게임 / 엔터테인먼트 - 기글하드웨어

zl1359.pdf

2.43MB

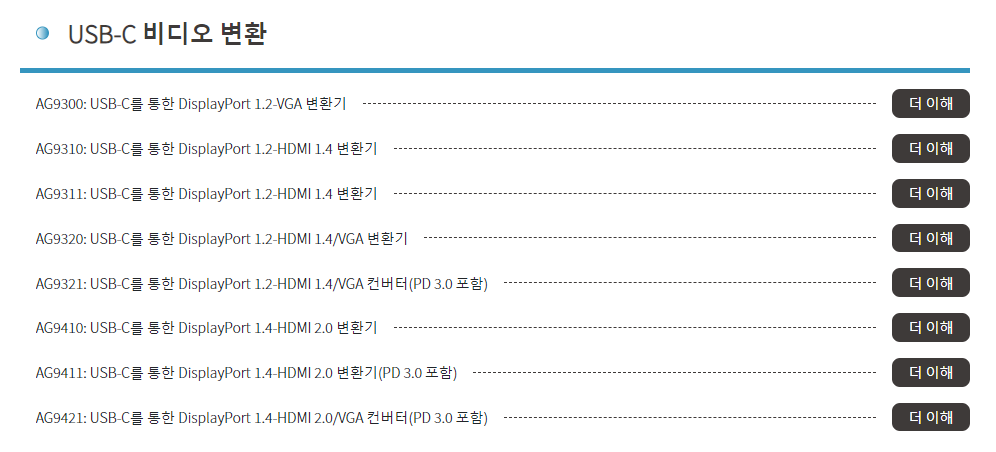

https://www.algoltek.com.tw/

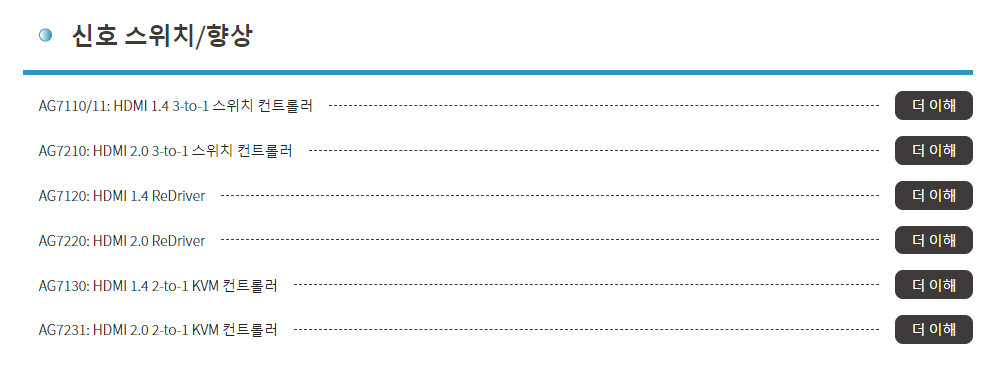

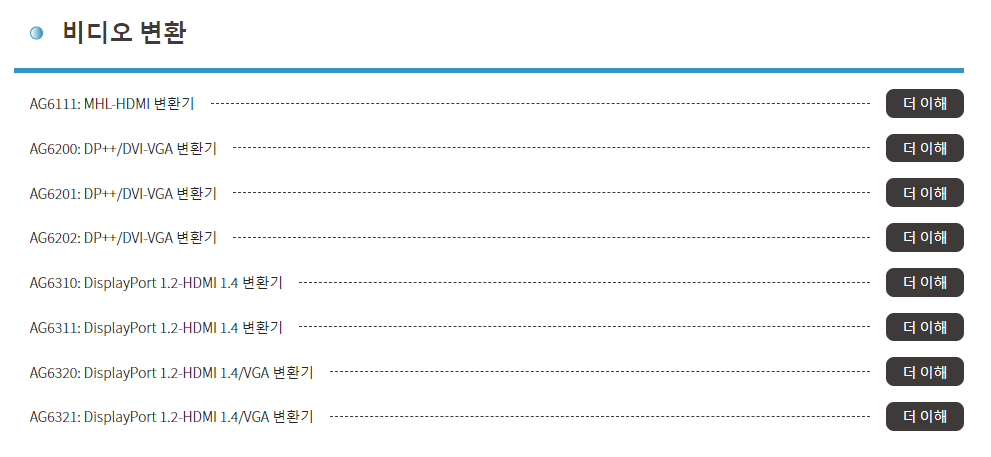

安格科技 - Algoltek

AG9311: DisplayPort 1.2 over USB-C to HDMI 1.4 converter

 Oct 20, 2020



Description

AG9311 series provide a single-chip solution of USB Type-C (DisplayPort Alternate Mode) to HDMI converter with Power Delivery. AG9311 series supports one USB Type-C plug and one USB Type-C receptacle. AG9311 series is compliant with USB Power Delivery Specification 3.0. The integrated 10-bit ADC of AG9311 series brings Fast Role Swap (FRS Lite) feature of USB PD 3.0 and over-voltage protection.

The DisplayPort receiver is compliant with DisplayPort 1.2 specification and supports up to 4096x2160/30Hz resolution with configurable 1 or 2 lanes configuration at 5.4(HBR2), 2.7(HBR), and 1.62(RBR) Gbps per lane. The HDMI transmitter is compliant with HDMI 1.4 and supports up to 4096x2160/30Hz resolution. Copy protection is provided by encryption with HDCP 1.4 and factory pre-loaded HDCP key.

AG9311 series provides I2S interface for independent stereo sound.

---

Key Features

• Up to 3 sets of Configuration Channel for one USB Type-C plug and one USB Type-C receptacle
• DisplayPort™ receiver
  • VESA DisplayPort™ 1.2 compliance
  • 1 or 2 lanes configuration at 5.4(HBR2), 2.7(HBR) and 1.62(RBR) Gbps per lane
  • Up to 4096x2160p/30Hz resolution
• HDMI™ transmitter
  • HDMI™ 1.4b compliance
  • Up to 4096x2160/30Hz resolution
  • Linear PCM with sample rate of 32 kHz, 44.1 kHz and 48 kHz
• Content protection
  • HDCP 1.4 compliance with pre-loaded key
• Separated sound
  • I2S interface
• Operating characteristic
  • 1.2V core power and 3.3V I/O power
  • Temperature range: 0°C to 70°C
  • ESD: HBM 2kV
• Package type
  • QFN-64L 8x8x0.75 mm3
  • QFN-48L 6x6x0.75 mm3

---

Application

• Laptop accessory
• Cable adapter
• Docking station

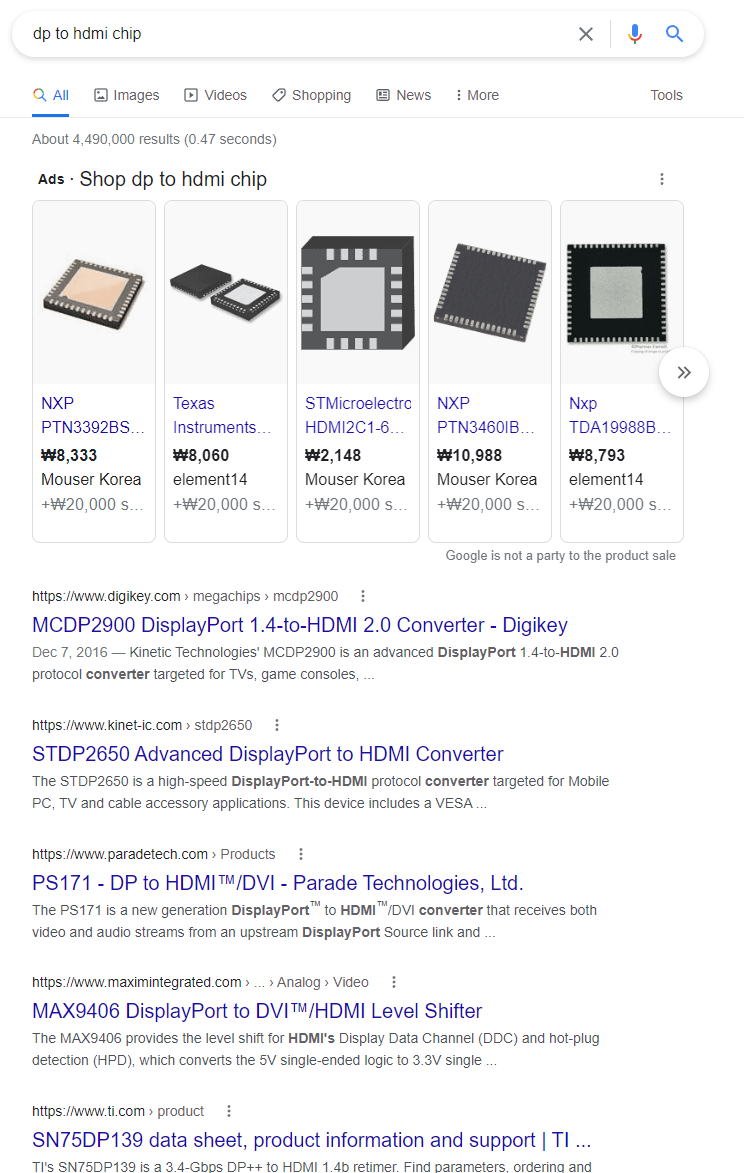

DP to HDMI





https://learnnamja.com/entry/HDMI%EC%BC%80%EC%9D%B4%EB%B8%94-vs-DP%EC%BC%80%EC%9D%B4%EB%B8%94-%EC%B0%A8%EC%9D%B4%EC%A0%90

HDMI케이블 vs DP케이블 차이점

유통사 리버네트워크

http://rivernw.com/nexi/

NEXI | 리버네트워크 홈페이지

https://prod.danawa.com/info/?pcode=6208465

리버네트워크 NEXI DisplayPort v1.2 to HDMI 케이블 (NX602, 2m) : 다나와 가격비교

엘레파츠

https://www.eleparts.co.kr/goods/view?no=7482104

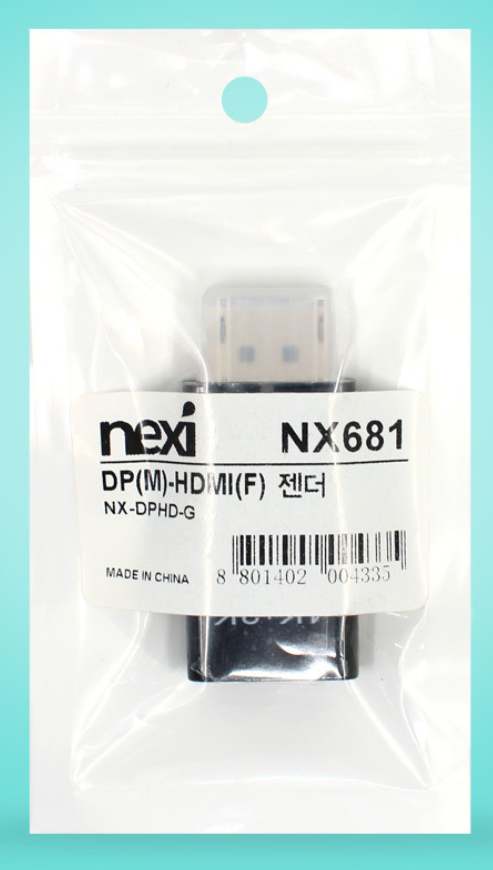

넥시 DP(M) to HDMI(F) 변환젠더 [NX681] [NX-DPHD-G] [블랙]

넥시가 리버네트워크의 자체브랜드구나

카탈로그 보니깐 이 호환성 기기 관련해서 제품 진짜 많네



ㅇㅇ

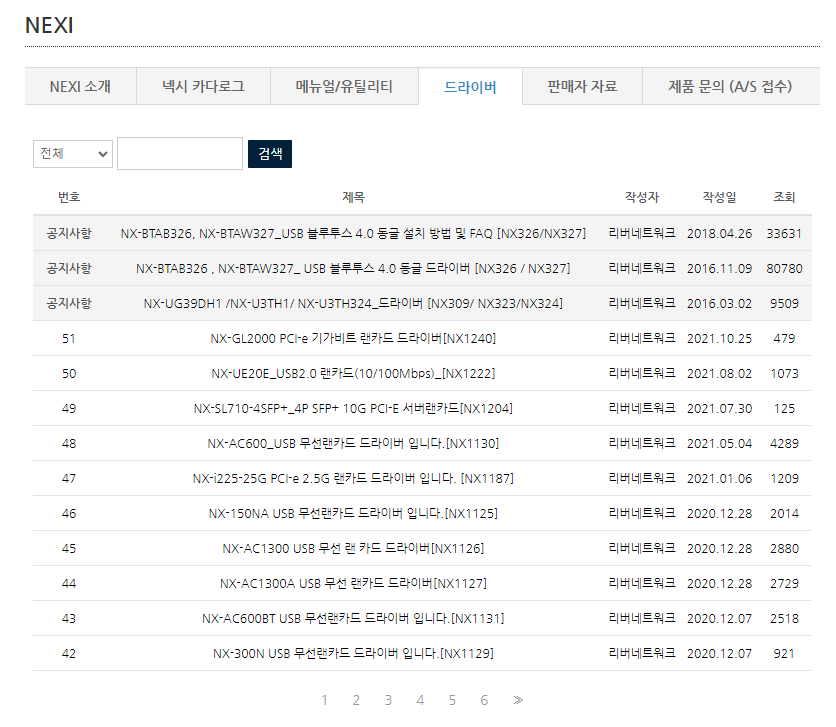

무선랜카드 드라이버

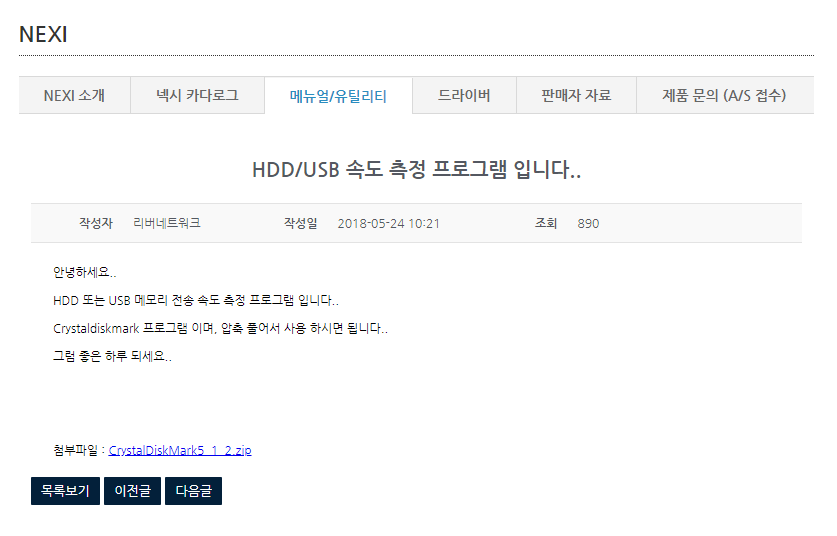

전송속도측정프로그램

여기서 원하는 정보는 못찾겠다.







TEXAS Instrument - Display Interface - SN65DP149RSBT



https://www.ti.com/product/SN65DP149/part-details/SN65DP149RSBT



Features for the SN65DP149

• DisplayPort™ Physical Layer Input Port to TMDS Physical Layer Output Port Supporting up to
  3.4-Gbps Data Rates
• Support DisplayPort Dual-Mode Standard Version 1.1
• Support HDMI1.4b Transmitter Electrical Parameters
• Integrated TMDS Level Translator and CDR
• Adaptive Receiver Equalizer and Programmable Fixed Equalizer
• Selectable De-Emphasis
• Low Power Typical Consumption
  • 390 mW at 3.4-Gbps Retimer
  • 10 mW at Shutdown State
• Integrated DVI and HDMI Identification Recognition Dual Mode DP Type 2 Capability
• Active I2C Buffer
• Input Swap on Main Lanes
• I2C and Pin-Strap Programmable
• Industrial Temperature Range:
  –40 to 85°C (SN65DP149)
• Extended Commercial Temperature Range:
  0 to 85°C (SN75DP149)

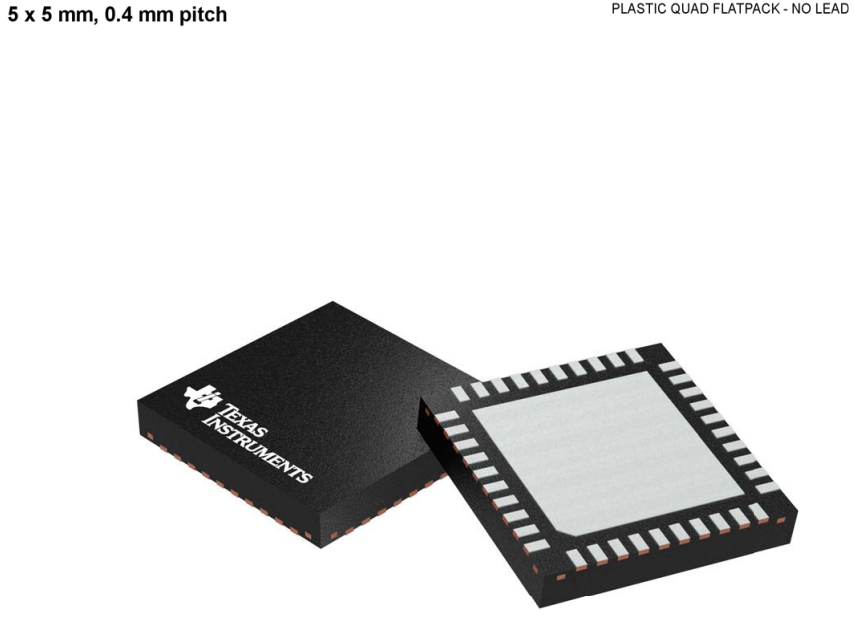

• 40-Pin 0.4-mm Pitch, 5-mm × 5-mm WQFN

Description for the SN65DP149

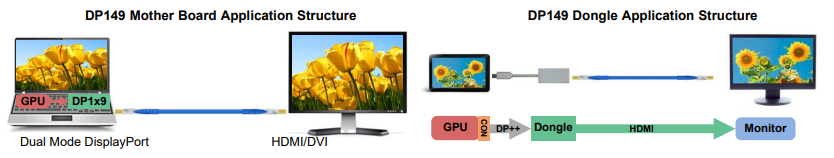

The SNx5DP149 device is a dual mode DisplayPort to transition-minimized differential signal (TMDS) retimer supporting digital video interface (DVI) 1.0 and high-definition multimedia interface (HDMI) 1.4b output signals. The SNx5DP149 device supports the dual mode standard version 1.1 type 1 and type 2 through the DDC link. The SNx5DP149 device supports data rate up to 3.4-Gbps per data lane to support Ultra HD (4K × 2K / 30-Hz) 8-bits per color high-resolution video and HDTV with 16-bit color depth at 1080p (1920 × 1080 / 60-Hz). The SNx5DP149 device can automatically configure itself as a re-driver at data rates <1 Gbps, or as a retimer at more than this data rate. This feature can be turned off through I2C programming.

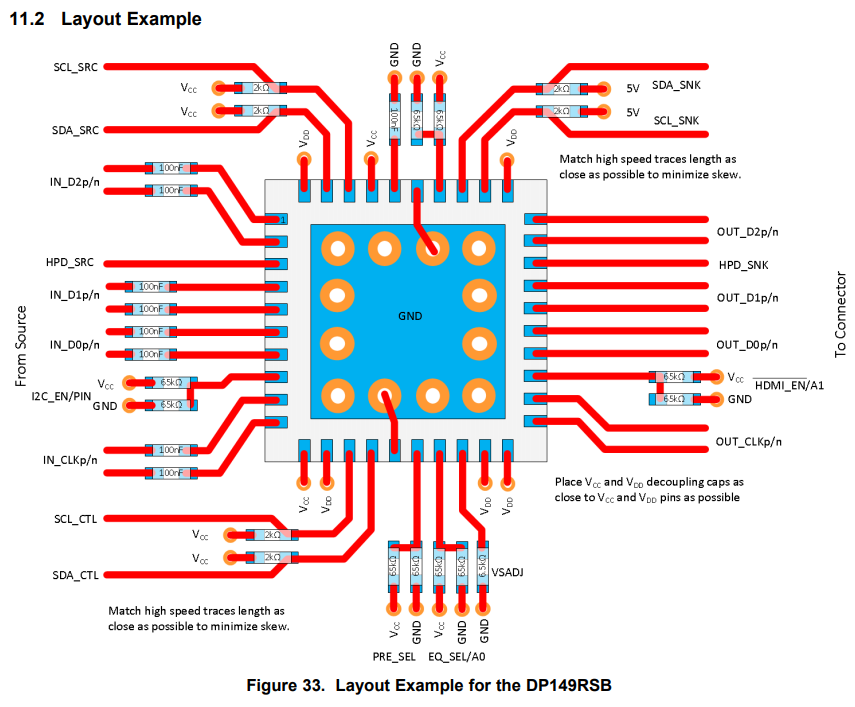

For signal integrity, the SNx5DP149 device implements several features. The SNx5DP149 receiver supports both adaptive and fixed equalization to clean up inter-symbol interference (ISI) jitter or loss from the bandwidth-limited board traces or cables. When working as a retimer, the embedded clock data recovery (CDR) cleans up the input high frequency and random jitter from video source. The transmitter provides several features for passing compliance and reducing system-level design issues like de-emphasis, which compensates for the attenuation when driving long cables or high-loss board traces. The SNx5DP149 device also includes TMDS output amplitude adjust using an external resistor on the Vsadj pin, source termination selection, and output slew rate control. Device operation and configuration can be programmed by pin strapping or I2C.

The SNx5DP149 device implements several methods for power management and active power reduction.

The SNx5DP149 receiver comes in a 40-pin RSB supporting space-constrained applications.

The SN65DP149 device is characterized for an industrial operational temperature range from –40°C to 85°C.

The SN75DP149 device is characterized for an extended commercial operational temperature range from 0°C to 85°C.



https://www.ti.com/lit/ds/symlink/sn65dp149.pdf?ts=1657490474514&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FSN65DP149%252Fpart-details%252FSN65DP149RSBT



아 이쪽에서 코어로직 어떻게 돌아가는지 너무 궁금한데

칩 내부에 관한 이야기는 기밀이라 안나오는게 너무 많구나.



https://hackaday.com/2020/06/02/an-open-source-hdmi-implementation-for-fpgas/

An Open Source HDMI Implementation For FPGAs

https://github.com/hdl-util/hdmi/

GitHub - hdl-util/hdmi: Send video/audio over HDMI on an FPGA

https://github.com/hdl-util

HDL Util



근데 확실히 다른 분야라서 HDMI 와 같은 기술표준에 대해 새롭게 공부해야 하는 경우가 많음.

우선 SSD 또는 USB와 같은 Memory Controll에 대해 먼저보자.
